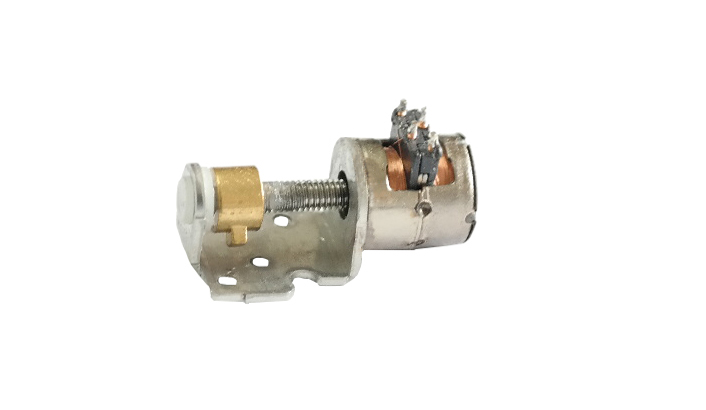

VSM0632 6mm micro stepper motor 2 phase pm stepper motor for projector
VSM0632 is a precision mini stepper motor fuselage diameter 6 mm, 7 mm fuselage length, 1 mm shaft diameter, the axial length can be according to the demand change appropriately, can also be equipped with gear, pulley, worm, screw, etc. The corresponding output device.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.
Mechanical Dimension:MM
Typical Applications
Specifications
| Product Name | 6mm micro stepper motor |
| Model | VSM0632 |
| Rated Voltage | 4.6V |
| Current Per Phase | 100 mA /phase |
| Coil Resistance | 40Ω±7% |
| No. Of phase | 1-2 Phases |
| Step Angle | 9 degree |
| Excitation Method | 1-2 Phase Excitation |
| Drive Mode | Bipolar Drive |
| Pull-Out Torque | 40 g min,At 500 pps |
| Max. Response Frequency | 1100 pps,At 4.6VDC |
| Max. Starting Frequency | 2000 pps,At 4.6VDC |
| Insulation Class | Class E for Coils |
| Insulation Strength | 300 V AC for One Second |
| Insulation Resistance | 1.0 MΩ (DC 100 V) |
| Operating Temperature Range | -10~+60℃ |
| Weight | 3.5 g(Ref.) |
| OEM & ODM SERVICE | AVAILABLE |
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Product Detail Presentation
