Tr8 Double Head Trapezoidal Lead Screw 8mm Diameter With Double Nuts Left And Right Handed

Name: Tr8 Double Head Trapezoidal Lead Screw 8mm Diameter With Double Nuts Left And Right Handed
Brand: VIC-TECH
Price: 25 USD

China Tr8 Double Head Trapezoidal Lead Screw 8mm Diameter With Double Nuts Left And Right Handed wholesale

Brand Name : VIC-TECH

Model Number : Tr8-1

Certification : RoHS

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1 Unit

Price : $25 - $98 / Units

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000Units per month

Delivery Time : 15-30 work days

Packaging Details : Standard export package, or can be customized

Screw outer diameter : 8mm

Screw lead : 1mm

Lead screw type : Trapezoidal lead screw

Screw direction : Left handed & Right handed

Nut material : Brass

Customization service : Available

Contact Now

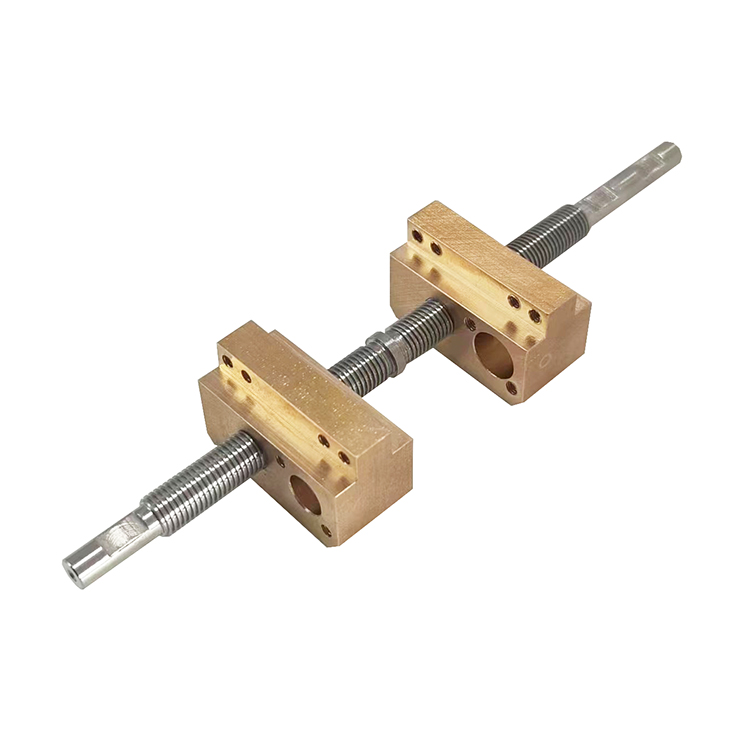

Tr8 Double Head Trapezoidal Lead Screw 8mm Diameter With Double Nuts Left and Right Handed

The is a double direction lead screw with double brass nut.

The lead screw direction on both sides are different, one is left handed, and the other is right handed.

So when the lead screw rotates, two nuts move towards opposite direction, thus it’s designed for electrical clamp.

The lead screw is customized, all the design including lead screw type, length and nut design are all fully customizable.

Please send us your lead screw design, before you place order.

Mechanical Dimension, Unit: mm

Tr8 Double Head Trapezoidal Lead Screw 8mm Diameter With Double Nuts Left And Right Handed

Technical Features:

Lead screw type	Trapezoidal screw
Screw lead	1mm (customzable)
Screw direction	Left handed & Right handed
Screw diameter	8mm (customzable)
Screw length	53mm (customzable)
Nut material	Brass
Screw material	Stainless steel

Tr8 Double Head Trapezoidal Lead Screw 8mm Diameter With Double Nuts Left And Right Handed

* ** Description of the content

Tr8 Double Head Trapezoidal Lead Screw 8mm Diameter With Double Nuts Left And Right Handed

About the trapezoidal screw and nut related instructions
Screw material	45# 40Cr YF45MnV SUS304 SUS316 etc
Nut material	Phosphor bronze,Zinc tin bronze,Aluminum zinc bronze Brass,Ductile iron,stainless steel ,Nylon
Accuracy level	7 level 8 level 9 level
Processing method	Cutting processing Roller extrusion
Processing range	single head, multiple heads, various tooth types
Sweeping direction	left-handed right-handed

Srew Datasheet:

No.	Spec model	Outer dia	Lead	Thread No.	Tooth distance	Outer dia
1	Tr3.5*1-N1-RH	3.5	1	1	1	3.5	3.475
2	Tr3.5*0.6096-N1-RH	3.5	0.6096	1	0.6096	3.5	3.475
3	Tr3.5*2.4384-N2-RH	3.5	2.4384	2	1.2192	3.5	3.475
4	Tr4-RH	4				4	3.975
5	Tr5*1-N1-RH	5	1	1	1	5	4.975
6	Tr5*2-N2-RH	5	2	2	1	5	4.975
7	Tr5*4-N4-RH	5	4	4	1	5	4.975
8	Tr5*6-N6-RH	5	6	6	1	5	4.975
9	Tr6*1-N1-RH	6	1	1	1	6	5.975
10	Tr6*2-N2-RH	6	2	2	1	6	5.975
11	Tr6*4-N4-RH	6	4	4	1	6	5.975
12	Tr6*6-N6-RH	6	6	6	1	6	5.975
13	Tr6*12-N6-RH	6	12	6	2	6	5.975
14	Tr6*12-N12-RH	6	12	12	1	6	5.975
15	Tr8*1-N1-RH	8	1	1	1	8	7.975
16	Tr8*3-N2-RH	8	3	2	1.5	8	7.975
17	Tr8*2-N1-RH	8	2	1	2	8	7.975
18	Tr8*4-N2-RH	8	4	2	2	8	7.975
19	Tr8*8-N4-RH	8	8	4	2	8	7.975
20	Tr8*10-N5-RH	8	10	5	2	8	7.975
21	Tr8*12-N6-RH	8	12	6	2	8	7.975
22	Tr8*14-N7-RH	8	14	7	2	8	7.975
23	Tr8*16-N -RH	8			2	8	7.975
24	Tr8*20-N -RH	8			2	8	7.975
25	Tr9*24-N24-RH	9	24	24	1	9	8.975
26	Tr10*1-N1-RH	10	1	1	1	10	9.975
27	Tr10*1-N2-RH	10			1	10	9.975
28	Tr10*2-N1-RH	10	2	1	2	10	9.975
29	Tr10*3-N2-RH	10	3	2	1.5	10	9.975
30	Tr10*4-N2-RH	10	4	2	2	10	9.975
31	Tr10*8-N4-RH	10	8	4	2	10	9.975
32	Tr10*10-N5-RH	10	10	5	2	10	9.975
33	Tr10*12-N6-RH	10	12	6	2	10	9.975
34	Tr10*14-N -RH	10			2	10	9.975
35	Tr10*20-N -RH	10			2	10	9.975
36	Tr12*2-N1-RH	12	2	1	2	12	11.975
37	Tr12*3-N1-RH	12	3	1	3	12	11.975
38	Tr12*8-N4-RH	12	8	4	2	12	11.975
39	Tr12*4-N -RH	12			2	12	11.975
40	Tr12*12-N -RH	12			2	12	11.975
41	Tr12*10-N4-RH	12	10	4	2.5	12	11.975
42	Tr12.7*12.7-N5-RH	12	12.7	5	2.54	12	11.975
43	Tr14*3-N -RH	14			3	14	13.975
44	Tr14*4-N -RH	14			4	14	13.975
